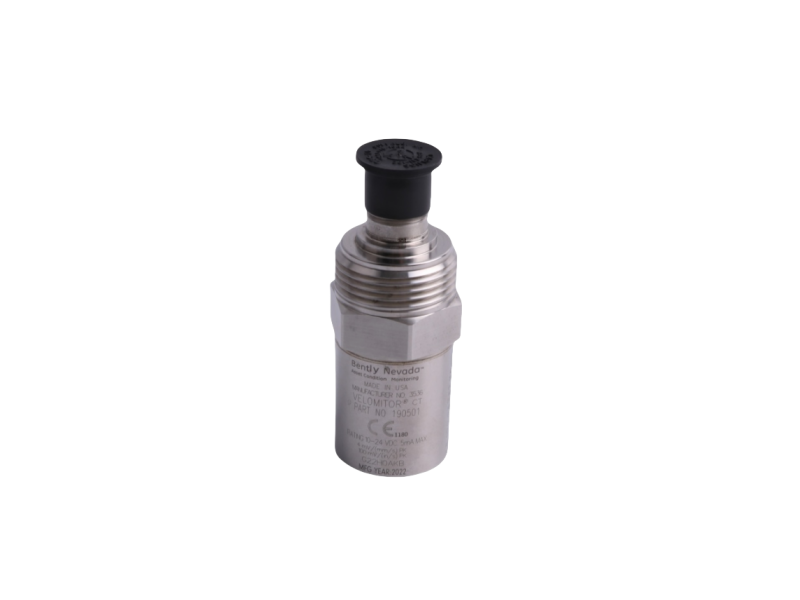

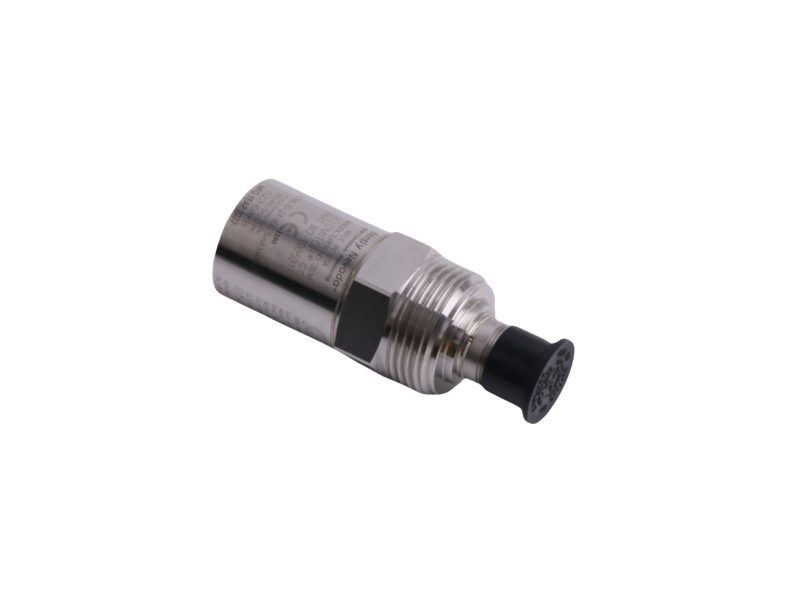

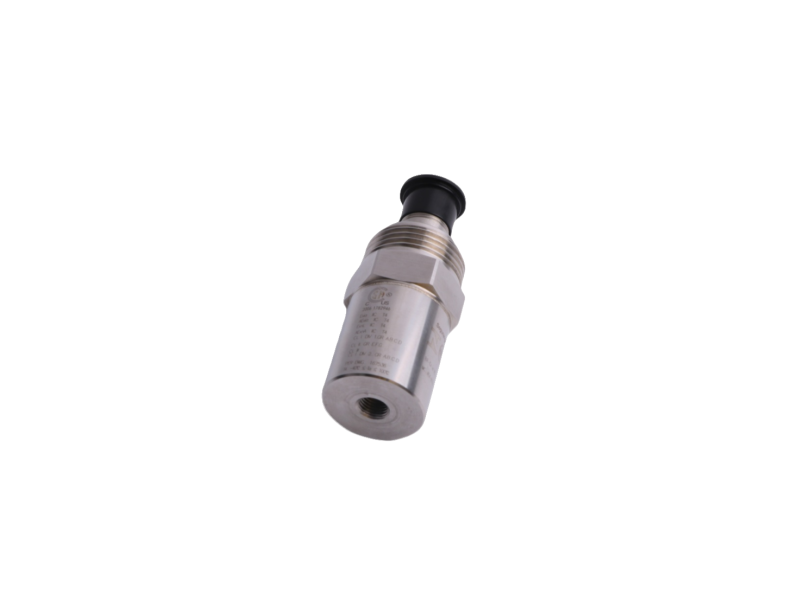

Description:190501-02-00-05 — Velomitor CT speed sensor for precise casing vibration and rotational monitoring in industrial machinery.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 190501-02-00-05 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
[Product Snapshot]
190501-02-00-05
Model 190501-02-00-05. This sensor is specially designed for monitoring the vibration velocity of large equipment casings/enclosures (casing/housing), and is suitable for low-frequency vibration monitoring of rotating machinery such as fans, cooling towers, heat exchangers, compressors, and pumps. Its structure is robust, adaptable to industrial environments, and compatible with various Monitoring systems. It is an important component of condition monitoring (CMS/Vibration Monitoring) and early fault warning systems.
[Key Service Promise]
Ø Brand/Series: Bently Nevada Velomitor CT
Ø Model (Part No.) : 190501-02-00-05
Ø Measurement type: Shell vibration velocity
Ø Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Ø Frequency Response: 3.0 Hz to 900 Hz (±1.0 dB) Expand to 1.5Hz to 1.0kHz (± 3.0dB)
Ø Velocity Range: Up to 63.5 mm/s pk (2.5 in/s pk)
Ø Transverse Response: less than 5% (relative to axial response)
Ø Output Bias Voltage: 10.1 V DC ± 1.0 V DC, Pin A relative to Pin B
Ø Dynamic Output Impedance: < 400 Ω (typical)
Ø Maximum Cable Length (Max Cable Length): Up to 305 m (1000 ft), with no significant signal attenuation
[Product advantages]
Suitable for low-speed or low-frequency vibration monitoring - with a frequency response starting from 3 Hz, it is particularly effective for vibration monitoring of equipment such as cooling fans, blowers, heat exchangers, and low-speed pumps.
Long cable connection capability - Supports up to approximately 305 meters of cables, suitable for long-distance wiring or remote monitoring system layout.
High sensitivity and wide dynamic range - 3.94 mV/mm/s sensitivity + 63.5 mm/s pk maximum speed response, suitable for monitoring requirements from micro-vibration to large amplitude.
Robust industrial structure - 316L stainless steel housing + MIL-C-5015 connector + excellent shielding/grounding design, suitable for harsh industrial environments (temperature, humidity, dust, corrosion, etc.).
Compatible with multiple installation methods and monitoring systems - supports stud installation, multi-angle installation, and can be integrated into existing vibration monitoring systems for easy replacement and maintenance.
[Application field ]
Cooling tower/fan/air-cooled heat exchanger (Heat-exchanger) - Monitor the vibration velocity of the casing and issue timely warnings for maintenance needs.
Pumps, compressors, fans and other drive equipment - used for casing vibration monitoring and overall equipment health status monitoring (CMS).
Vibration detection of the casing of large rotating machinery (such as generators, turbines, etc.) is used to assist the shaft vibration monitoring system.
Long-distance wiring system - In situations where the distance between the factory/field monitoring center and the field sensors is relatively far.
Vibration monitoring/maintenance systems applicable to industries such as petrochemical, chemical, papermaking, ventilation, air conditioning (HVAC), and water supply
