Description:ABB RTAC-01 (64610805) is a pulse encoder interface module for precise motor position and speed feedback in drive systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | RTAC-01 64610805 |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
20 years of ABB spare-parts focus · 12-month warranty · Same-day DHL/FedEx/UPS dispatch

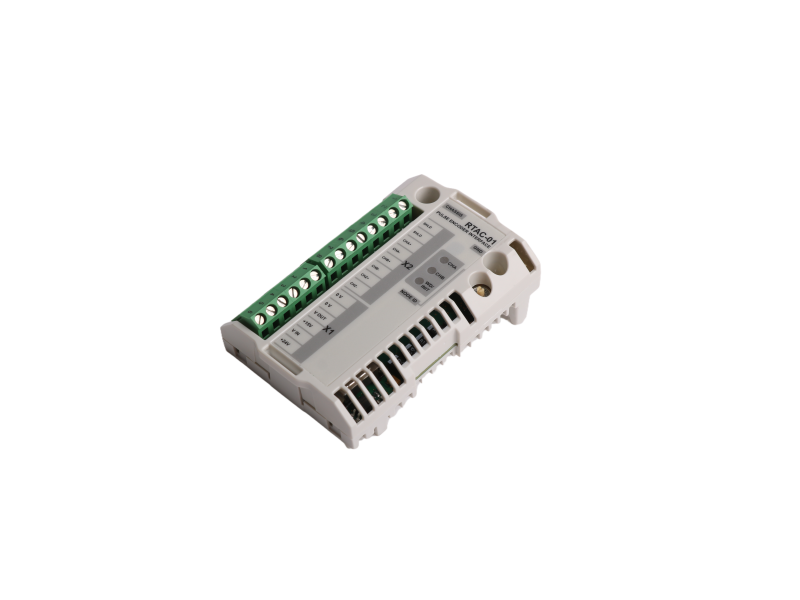

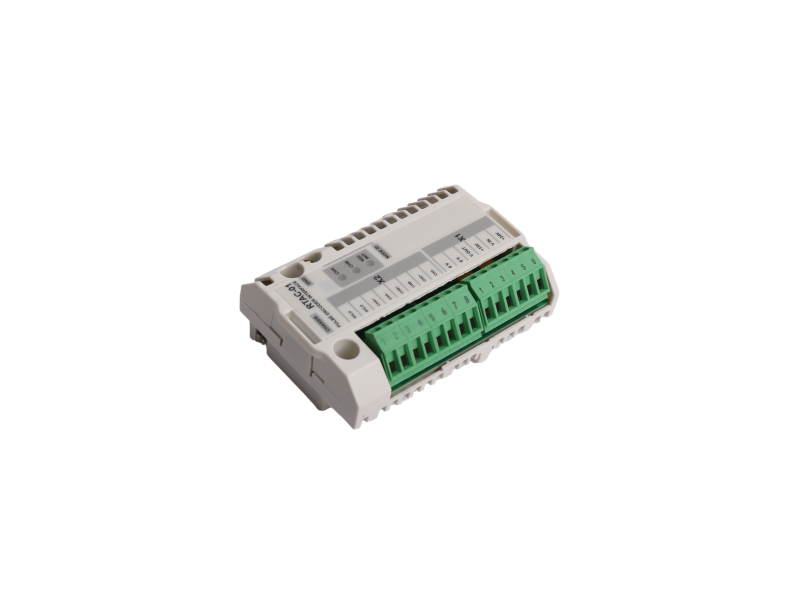

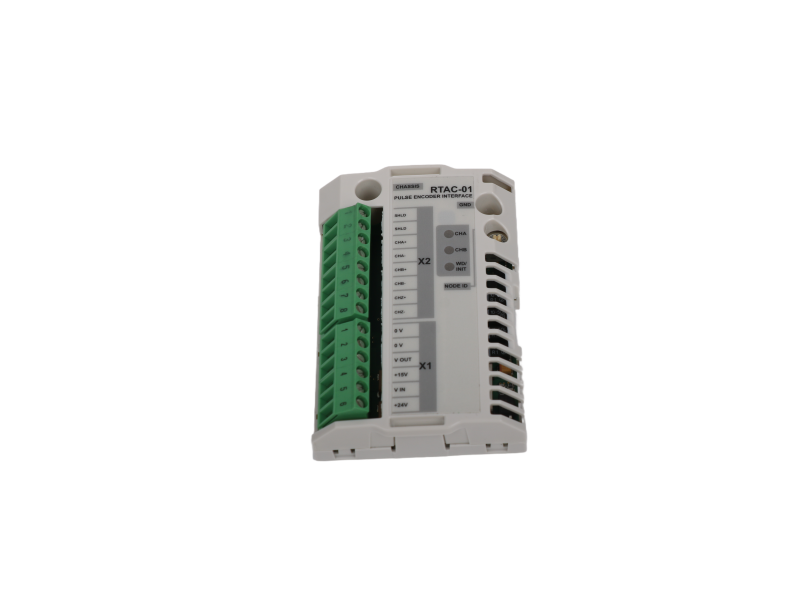

ABB RTAC-01 (64610805) — Pulse Encoder Interface Board
Turn any RMIO slot into a 200 kHz, 15-bit speed-feedback front-end in 30 seconds.
① Why it’s an eye-catcher
RTAC-01 captures incremental A/B/Z encoder pulses, delivers 0.003 % speed resolution to the drive and powers the encoder (15 V or 24 V, 5 W each) through one 38-pin connector—no external supply, no jumper maze.
② Key specifications
|
Feature |
Value |
|
Max. frequency |
200 kHz (A/B) |
|
Resolution |
15 bit ≈ 0.003 % |
|
Accuracy |
50 ppm |
|
Encoder supply |
2 × selectable 15 V / 24 V, 5 W, short-circuit proof |
|
Cable length |
300 m (diff), 200 m (SE), 100 m (OC) |
|
Isolation |
1.5 kVAC logic-to-ground |
|
Slot |
RMIO SLOT1/2 (or AIMA-01 DIN-rail) |
|
Temperature |
–25 … +70 °C, IP20 |
|
Marks |
CE, UL, CSA |
③ Three-step field install
Power down → slide card into SLOT1 until latch clicks
Tighten both captive screws (ground shield automatically)
Wire encoder, choose 15 V/24 V with jumper, power up—green LED = locked
④ Typical uses
Winder lines: 0.003 % speed loop keeps tension constant
Crane travel: 300 m long cable, no repeater needed
Test bench: auto-switch 5 V/24 V encoders without hardware change
⑤ Plug-and-play encoder bundle
|
Qty |
Item |
Stock |
Note |
|
1 |
RTAC-01 64610805 |
Spot |
15 / 24 V selectable |
|
1 |
RDCO-0C fibre board |
Spot |
For remote AMC |
|
2 m |
Twisted-pair shield cable |
Spot |
4×(2+1) 1 mm² |
|
1 |
USB param cable |
Spot |
DriveWindow ready |
⑥ Delivery & after-sales
12-month warranty starts on shipping date; advance replacement available—send the new board first, return the old one later
Orders before 12:00 noon Xiamen time packed the same day; afternoon orders leave next morning
Neutral anti-static box with customs QR code outside; clearance documents auto-generated—no duplicate paperwork needed
Multiple delivery options: warehouse pick-up, SF Express domestic collect, international port-to-port or door-to-door
Contact May
Email: ab@mooreplc.com
Mobile/WhatsApp: +86-18106909650
WeChat ID: dcsfc
Send me the encoder model and cable length—within ten minutes you’ll receive a list of matched cable, connectors and termination resistors.
