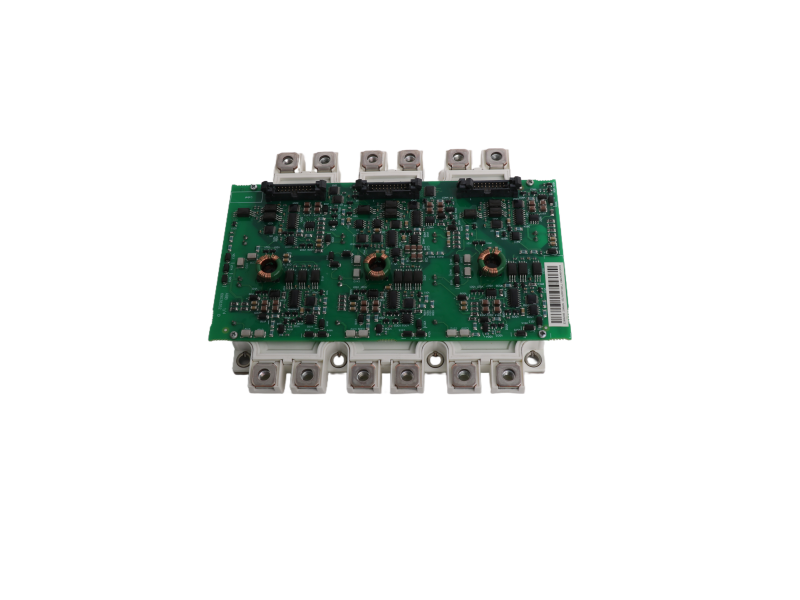

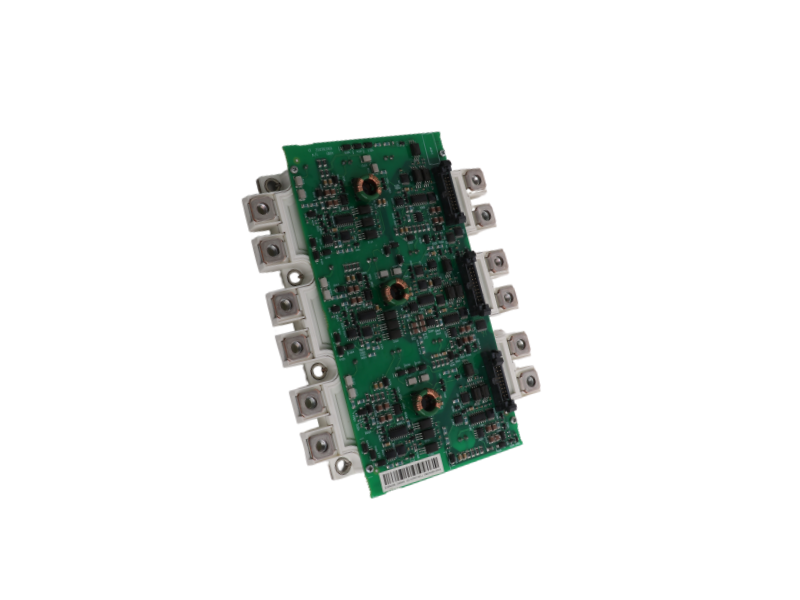

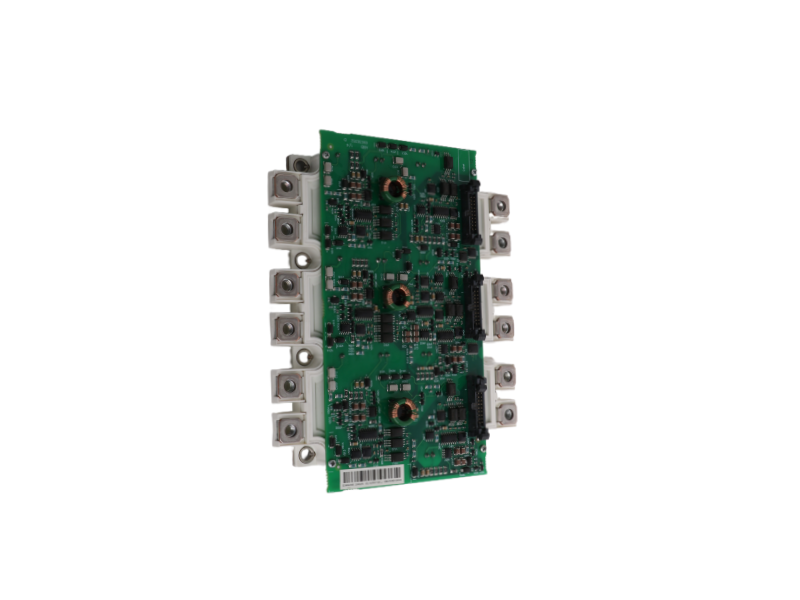

Description:ABB FS450R17KE3/AGDR-72CS is a high-performance drive board for controlling industrial motors efficiently.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | FS450R17KE3/AGDR-72CS |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
450 A, 1 700 V “single-stack” kit for ACS800-104 R7i / R8i cabinets
Shipped within 24 h by PLC Autocontroller – 20 years of automation-spare expertise
Blown stack? – Complete kit (IGBT, driver, thermal pad) arrives ready-built; no on-site matching.
Missing drawings? – Pre-wired ribbon cables and guide pins = zero wiring errors.
Downtime penalties? – Built-in NTC + DESAT send trip data straight to the CPU; fault found in < 5 min.
|
Item |
FS450R17KE3 module |
AGDR-72CS driver |
|
Repetitive VCES |
1 700 V |
— |
|
DC current, Tc = 80 °C |
450 A |
— |
|
10 ms non-rep. IC |
900 A |
— |
|
VCE(sat) typ. |
2.05 V |
— |
|
Switching range |
— |
2 ... 16 kHz (default 4 kHz) |
|
Isolated supply |
— |
+15 V / −7 V, 2 W |
|
Protection time |
— |
DESAT < 2 µs, NTC 3 °C hysteresis |
|
Case temperature |
−40 ... +125 °C |
−40 ... +70 °C |
|
Foot-print |
160 × 65 × 20 mm |
120 × 55 × 18 mm |
|
Weight |
2.3 kg |
0.5 kg |
|
Industry |
Load |
Per-cabinet power |
Observed MTBF |
|
Municipal waste-water |
6 × 22 kW submersible pumps |
132 kW |
> 82 000 h |
|
BOPP film line |
75 kW extruder main |
75 kW |
> 65 000 h |
|
Port crane |
90 kW hoist & travel |
180 kW |
> 55 000 h |
1. Power down – wait until DC < 50 V (on-board LED OFF).
2. Undo 4 × M5 screws & 2 ribbons – slide old stack out.
3. Stick new thermal pad (included) – insert new stack – torque 4 screws – reconnect ribbons – self-test OK.
ABB order code: 68569427 (full kit with pad, screws, desiccant bag)
Stock location: Xiamen bonded warehouse – ships within 24 h
Warranty: 12 months, extendable to 24 months
Docs: Original ABB instruction book + our 1-page Chinese “3-step swap” card shipped together
Need a quote or BOM check?
Sales Manager: May
E-mail: ab@mooreplc.com
Mobile / WhatsApp: +86-18106909650
WeChat: dcsfcs
Send us your ACS800 serial number – we’ll confirm the correct revision within 30 min and make sure your first-time fix is the last-time fix.
