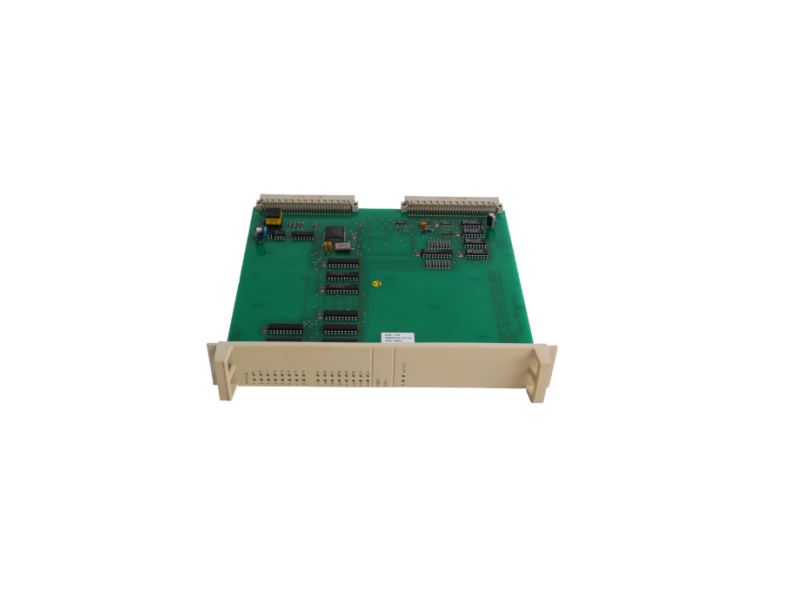

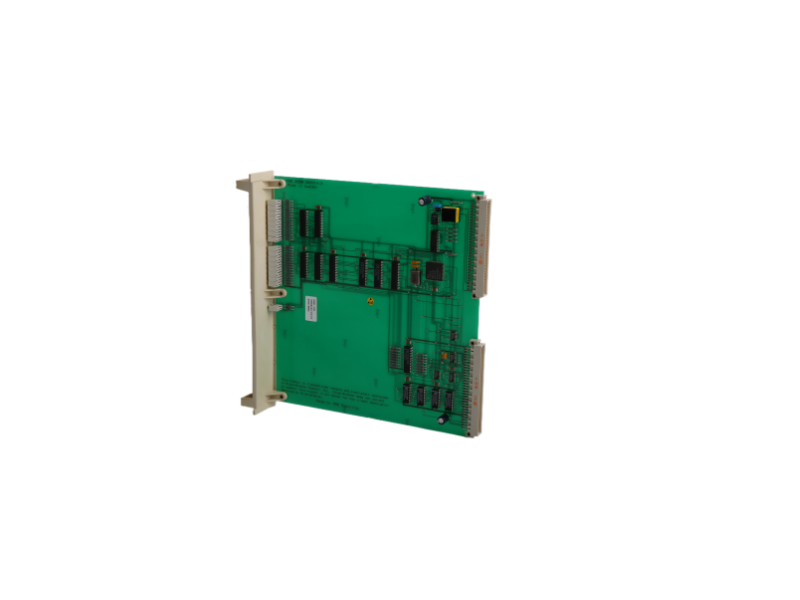

Description:ABB DSQC239 (YB560103-CH) is a remote I/O module for S3 systems
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | DSQC239 YB560103-CH |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Robotics & Motion-Control Expertise
Field Note: ABB DSQC239 YB560103-CH Remote I/O Module
Purpose
DSQC239 (YB560103-CH) is a plug-and-play remote I/O board for ABB S3/S4 robot controllers. It off-loads 16 digital I/O points (8 DI / 8 DO) from the main CPU, freeing up backplane slots and giving you sub-millisecond response in welding, pick-and-place, or palletizing cells.
Performance Highlights
|
Parameter |
Value |
|
I/O Channels |
8 × 24 V DC DI, 8 × 24 V DC DO (0.5 A) |
|
Bus Protocol |
DeviceNet, auto-baud 125 kbps – 1 Mbps |
|
Supply |
24 V DC (20.4 – 28.8 V), 150 mA max |
|
Isolation |
500 V channel-to-bus |
|
Response Time |
< 0.5 ms scan cycle |
|
Diagnostics |
LED per channel + fault log |
|
Size |
120 × 50 × 30 mm, 0.2 kg |
|
Temperature |
–20 °C … +60 °C |
|
Certifications |
CE, UL, ATEX Zone 2 |
Installation Advantages
• Spring-cage terminals – accept 0.2–2.5 mm² wire without ferrules.
• Hot-swap design – swap the card online, no robot restart.
• DIN-rail snap – installs in < 30 s.
Ready-to-Ship Package
|
Function |
Part Number |
Note |
|
I/O Module |
DSQC239 YB560103-CH |
This unit |
|
DeviceNet Drop Cable |
3HAC022643-001 |
2 m, pre-terminated |
|
T-Connector |
3HAC022646-001 |
Adds bus drop without cutting trunk |
|
Bus Terminator |
3HAC022647-001 |
120 Ω, ends DeviceNet segment |
|
24 V DC Supply |
3HAC029157-002 |
5 A DIN-rail, redundant inputs |
|
Hand-Held Tester |
3HAC029157-003 |
Portable I/O simulator for commissioning |
All items factory-sealed and available for same-day dispatch from PLC Autocontroller.
