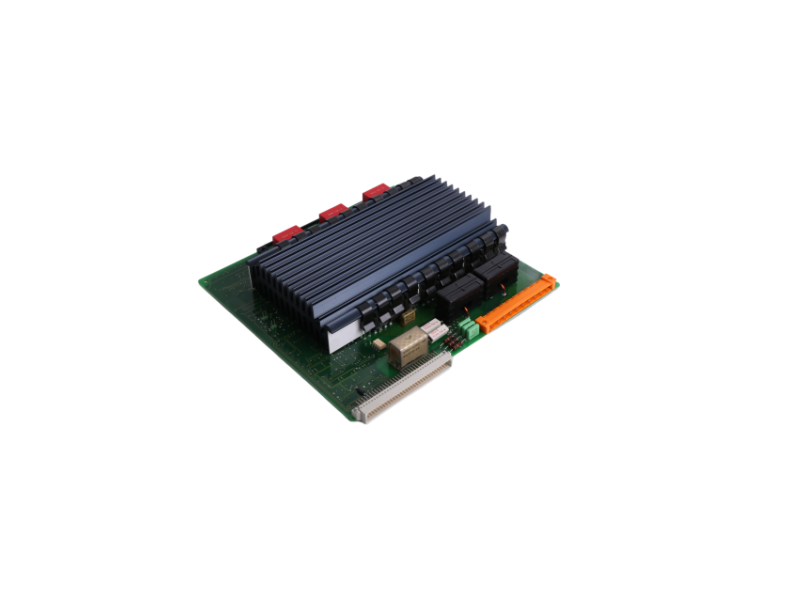

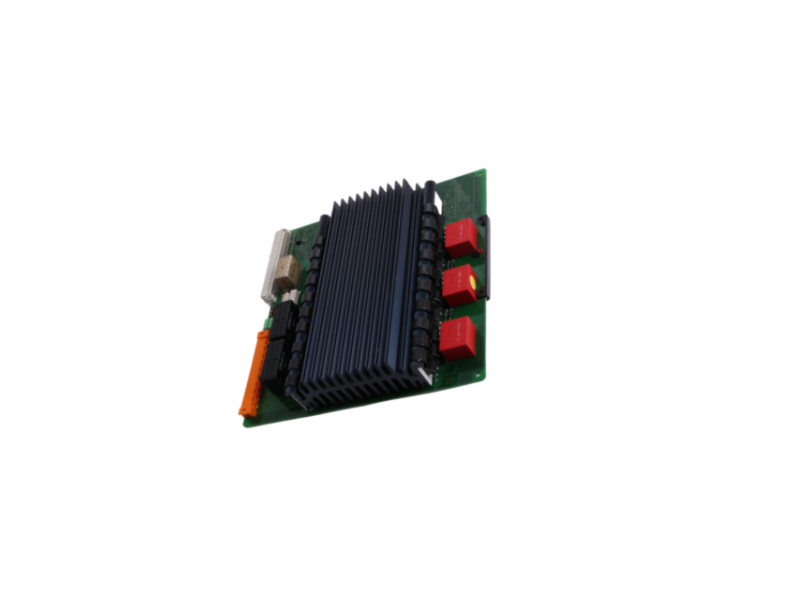

Description:ABB DSQC236T (YB560103-CE) is a driver board for ABB robot servo axis control
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | DSQC236T |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Motion-Control Expertise
Data Sheet: ABB DSQC236T Axis Drive Board (YB560103-CE)
Purpose
DSQC236T is a 5-axis servo-drive board for ABB S3/S4 controllers, providing closed-loop current and velocity control for each axis.
Key Specifications
• Axes Supported: 5 servo axes (±10 V command)
• Max Current: 20 A peak per axis
• Current Loop: 10 kHz bandwidth
• Encoder Interface: 5 × differential RS-422, 1 MHz
• Supply: 24 V DC logic / ±15 V DC analog
• Protection: Over-current, short-circuit, thermal shutdown
• Dimensions: 100 × 160 × 20 mm
• Operating Range: –20 °C … +70 °C
• Certifications: CE, UL, CSA Class I Div 2
Real-World Scenarios
• Retrofit CNC lathes with robotic loading arms
• High-speed glue-dispensing gantry robots
• Low-headroom material-handling shuttles
• Test-bench servo rigs for university labs
Ready-to-Ship Related Items
| Function | Part Number |
| Axis Drive Board | DSQC236T (YB560103-CE) |
| Battery Pack | 3HAC044075-001 |
| Motor Cable | 3HAC028357-027 |
| Power Supply | 3HAC029157-002 |
| Teaching Pendant | 3HAC028357-027 |
All items factory-sealed, same-day dispatch.
