Description:ABB AINT-02C is aMain Circuit Interface Board for precise motor position and speed feedback in drive systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | AINT-02C |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

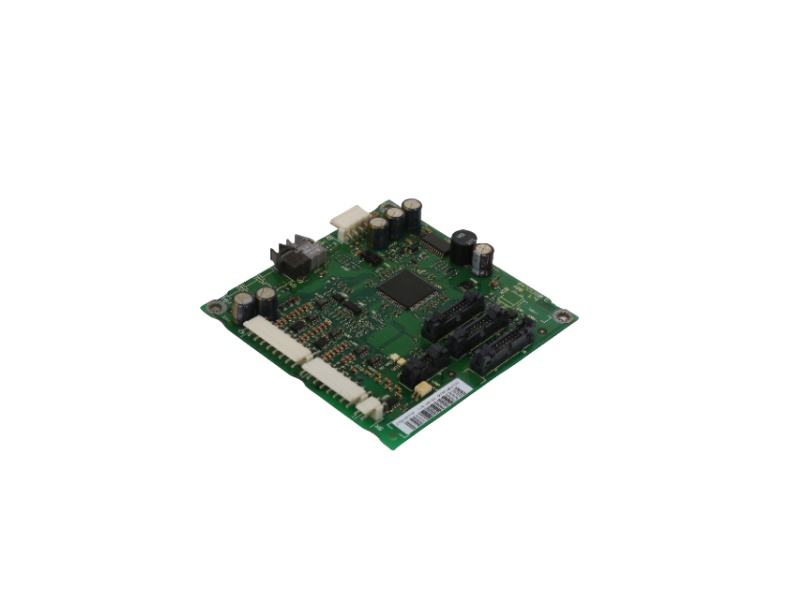

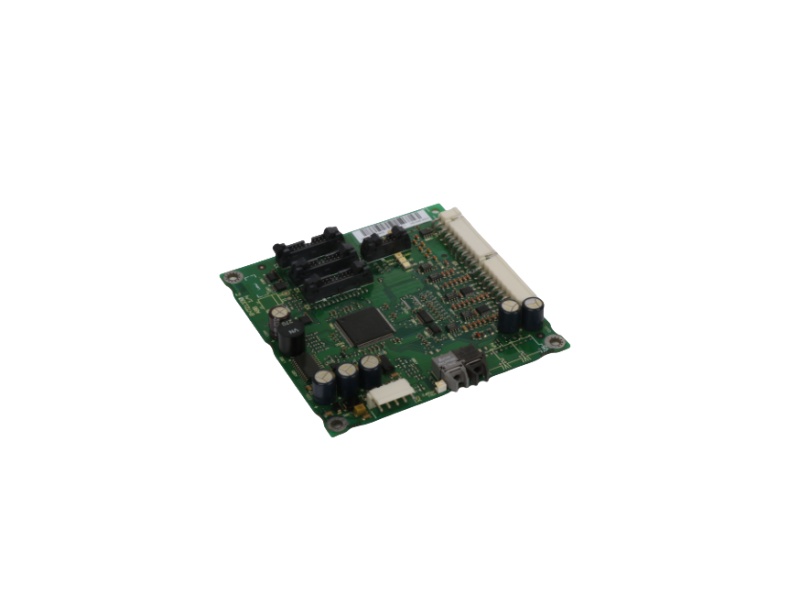

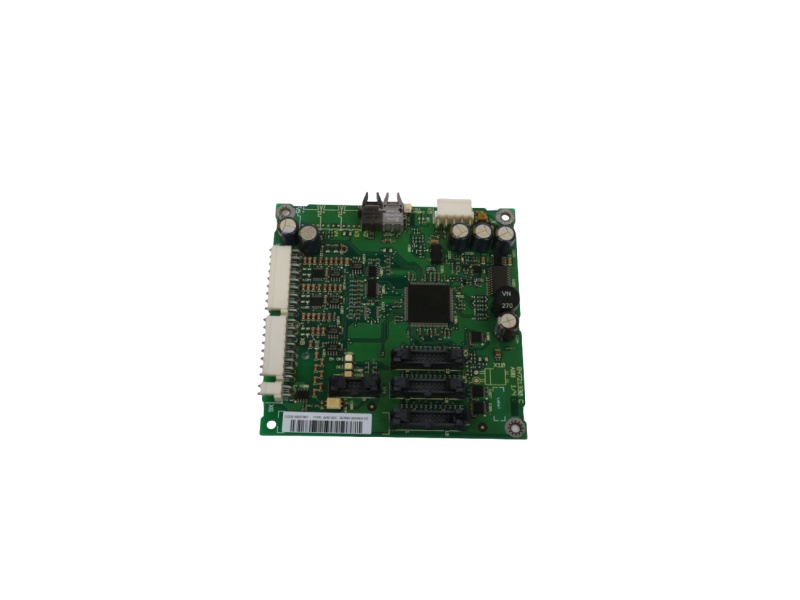

AINT-02C Main Circuit Interface Board
Sales Manager: May | ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat ID: dcsfcs
1. Function-AINT-02C
The AINT-02C is located between the RMIO control board and the power stack of the ACS800/880 drive.
It measures DC voltage, output current, and heatsink temperature, then transmits the data to the control unit via two fiber optic links.
If any condition is out of range (overcurrent, overvoltage, overtemperature, or ground fault), the interface board latches the fault and shuts down the IGBT.
|
Item |
Value |
Note |
|
Supply |
24 V DC, 120 mA |
from APOW-01C |
|
Fibre |
2 × HFBR-1528/2528 |
5 MBd, 650 nm |
|
Analog inputs |
3 × ±10 V diff. |
12-bit, 1 ms scan |
|
Digital I/O |
6 × 24 V |
4 in / 2 out |
|
Isolation |
2 kV RMS |
IEC 61800-5-1 |
|
Temp. range |
–20 … +70 °C |
conformal coated |
|
Size / weight |
120 × 80 × 30 mm / 0.3 kg |
same as AINT-12C |
|
MTBF |
280 kh @ 40 °C |
SN 29500 |
Which board fits without re-wiring?
|
Old part |
Fits? |
Action |
|
AINT-02C (any suffix) |
yes |
none |
|
AINT-12C |
yes |
reload node address |
|
AINT-14C |
no |
4-fibre, different FPGA |
|
AINT-24C |
no |
dual-redundant optic |
|
AINT-02C (any suffix) |
yes |
none |
