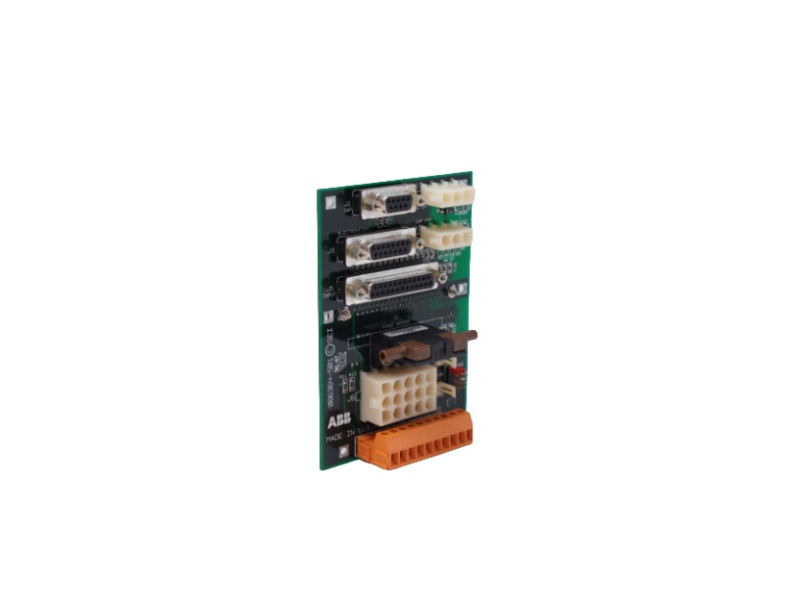

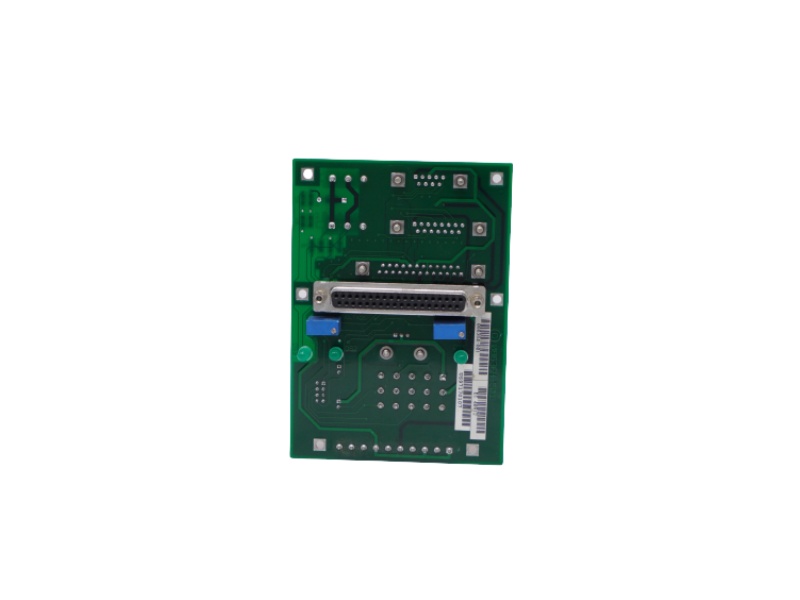

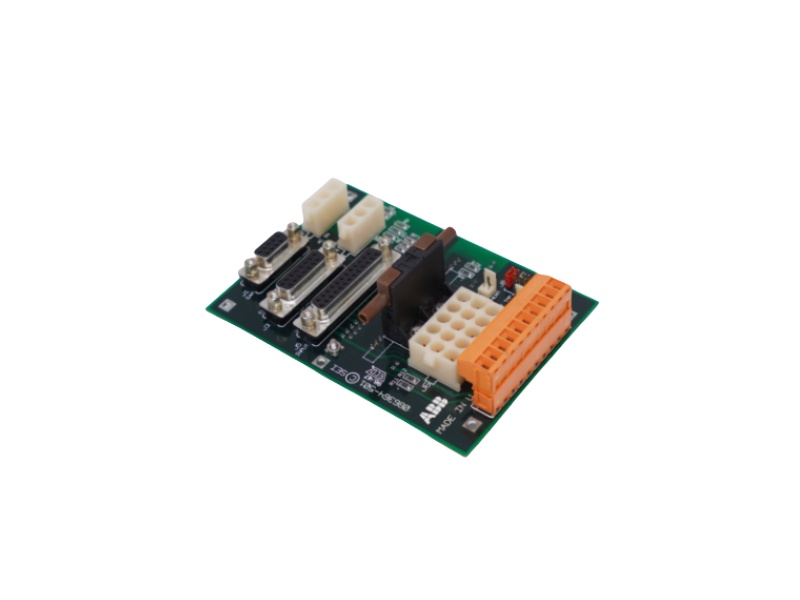

Description:The 086364-001 serves as a Circuit Board Sensor module unit in ABB’s automation network.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | 086364-001 |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller| 20 Years of Modular-Control Expertise
Data Sheet:ABB 086364-001 Circuit Board Sensor module unit
ContactSales Manager May E-mail: ab@mooreplc.com | Same-day dispatch worldwide
Regarding the ABB 086364-001
This is a sensor electronic interface circuit board module for use in ABB industrial automation and control systems.
Its primary function is to serve as an interface between sensor signals and the control system,
processing, conditioning, and transmitting input signals to ensure system stability and reliability.
l Electrical & mechanical quick-check
|
Parameter |
Factory value |
Tolerance / note |
|
Input range |
0…10 V DC & 4…20 mA |
jumper-selectable |
|
Resolution |
12 bit (4096 steps) |
monotonic |
|
Isolation |
1 500 V RMS |
channel-to-bus |
|
Scan time |
≤ 1 ms |
all 8 ch. |
|
Power from rack |
+24 V DC, 60 mA |
no ext. supply |
|
Dimensions |
147 × 55 × 248 mm |
matches 0863xx family |
|
Weight |
0.24 kg |
0.13 kg carton only |
l Which obsolete card can be replaced without re-wiring?
|
Your old ABB part |
086364-001 fits? |
Action needed |
|
086362-001 |
yes (same 8 DI) |
copy I/O map |
|
086318-002 |
yes |
move jumper to “V” position |
|
086366-004 |
yes |
re-calibrate scale in DAT tool |
|
086348-001 |
no (16 DI) |
use two 086364-001 instead |
l Order & ship
1. Reply with your PO and delivery address.
2. We export same day via DHL 3-day express.
3. 12-month PLC Autocontroller warranty .
l Contact Hotline
PLC Autocontroller – 20 Years of Automation Spare Parts Experience – In-Stock ABB 086364-001 Digital Input Module,
Original Packaging.
Contact May now: ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs | for real-time pricing and availability.
